60 Hz International

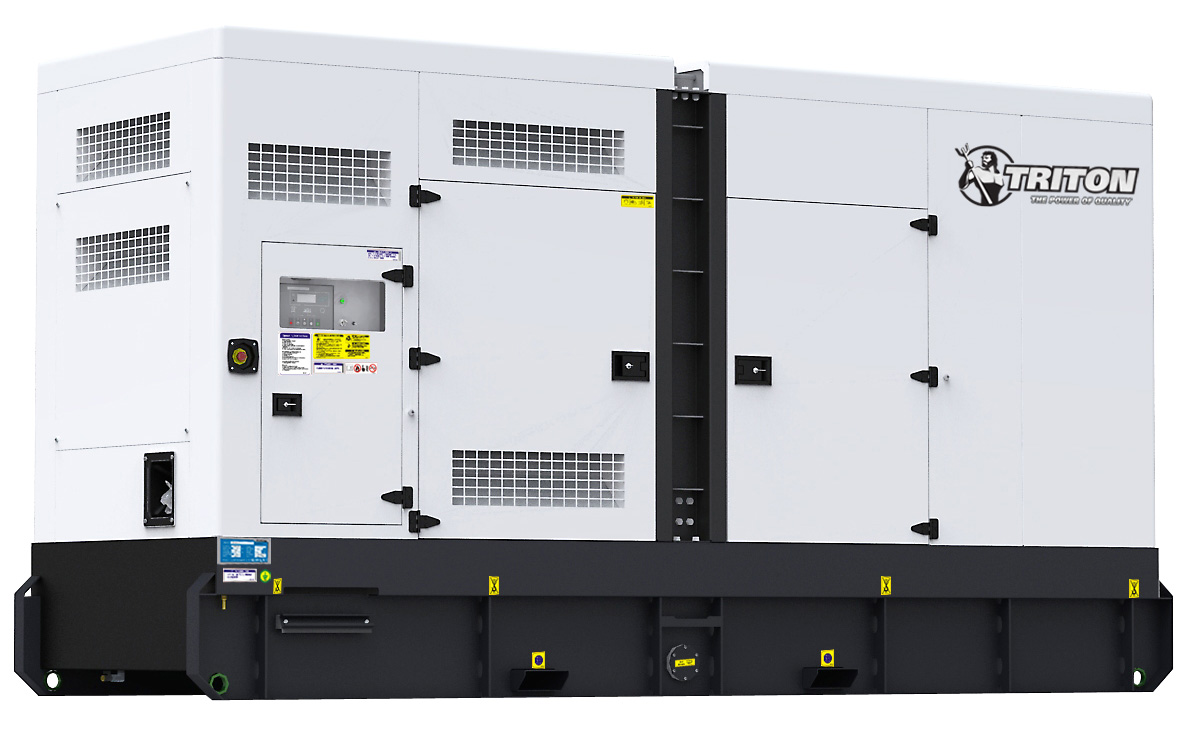

400 kW Triton Diesel Generator TP-P400-T1 International Use
SKU TP-P400-T1 Model TP-P400-T1-60
- Engine
- Perkins 2206A-E13TAG6
- Alternator
- Leroy Somer LSA46.3L11
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 110/220 · 120/240 · 120/208 · 277/480
- Configuration
- Enclosed · Open
- Fuel tank
- 800 L
Market compatibility
International market
Triton International generators are not compliant for use in the United States or Canada due to the emissions status.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Markets with a verified 60 Hz grid: Middle East (1) · Caribbean & Central America (7) · Latin America (5) · Asia-Pacific (1) · Countries A–Z
Overview
Product overview
The TP-P400-T1 is a 500 kVA / 400 kW standby, 438 kVA / 350 kW prime diesel generator for international markets.
It uses a Perkins 2206A-E13TAG6 engine, a Leroy Somer LSA46.3L11 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 110/220 and 120/240 and 120/208 and 277/480, in enclosed or open configurations.
- Powered by Perkins 2206A-E13TAG6
- Emissions: Not EPA Certified – Export Use Only
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 500 kVA / 400 kW
- Prime Power Rating: 438 kVA / 350 kW
- Fuel Capacity 800 L
Read the full product description
Our TP-P400-T1-60 provides a standby rating of 400kW / 500kVA and a prime rating of 350kW / 438kVA. The TP-P400-T1-60 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 2206A-E13TAG6, this generator set will provide you with unsurpassed performance and reliability.
The TP-P400-T1-60 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open & Enclosed
Sub-Base Tank 8-10 Hours
Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Perkins 2206A-E13TAG6 engineEngine data sheet included below
- Standby & prime rated400 kW / 500 kVA standby · 350 kW / 438 kVA prime
- 60 Hz, 3-phaseVoltages listed: 110/220, 120/240, 120/208, 277/480
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA46.3L11 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
Listed in our industry catalogs: Manufacturing
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P400-T1-60 |
|---|---|
| kVA / kW Standby | 500 kVA / 400 kW |
| kVA / kW Prime | 438 kVA / 350 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 2206A-E13TAG6 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA46.3L11 |
| Voltages Available | 110/220, 120/240, 120/208, 277/480 |
|---|
| Fuel Tank Capacity | 800 L |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Not EPA Certified – Export Use Only |
|---|---|
| Market | International market |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Complete your generator package
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 800 L. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts & service itemsSearch parts and documents that mention the 2206A-E13TAG6. Confirm your engine serial number when ordering Find parts
Similar generators
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
-
- 60 Hz International
350 kW Triton Diesel Generator TP-P350-T1 International Use
TP-P350-T1
- Standby
- 350 kW / 438 kVA
- Prime
- 320 kW / 400 kVA
Engine Perkins
- 60 Hz International
450 kW Triton Diesel Generator TP-D450-T1 International Use
TP-D450-T1
- Standby
- 462 kW / 578 kVA
- Prime
- 419 kW / 524 kVA
Engine Doosan
- 60 Hz International
350 kW Triton Diesel Generator TP-D350-T1 International Use
TP-D350-T1
- Standby
- 329 kW / 411 kVA
- Prime
- 302 kW / 378 kVA
Engine Doosan
| Model | TP-P400-T1This model | TP-D400-T1 | TP-P350-T1 | TP-D450-T1 | TP-D350-T1 |
|---|---|---|---|---|---|
| Standby | 400 kW / 500 kVA | 405 kW / 507 kVA | 350 kW / 438 kVA | 462 kW / 578 kVA | 329 kW / 411 kVA |
| Prime | 350 kW / 438 kVA | 355 kW / 444 kVA | 320 kW / 400 kVA | 419 kW / 524 kVA | 302 kW / 378 kVA |
| Engine | Perkins 2206A-E13TAG6 | Doosan P158LE | Perkins 2206A-E13TAG5 | Doosan DP158LC | Doosan DP126LB |
| Alternator | Leroy Somer LSA46.3L11 | Leroy Somer TAL0473A | Leory Somer LSA46.3L11* | Leroy Somer TAL0473C | Leroy Somer TAL0473A |
| Control panel | DSE7420 | DSE7320 | DSE7420 | DSE7320 | DSE7320 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Voltages | 110/220, 120/240, 120/208, 277/480 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | 800 L | 970 Liters (Enclosed) | 8-10 Hr | 970 Liters (Enclosed) | 780 Liters (Enclosed) |
| Market | International market | International market | International market | International market | International market |
