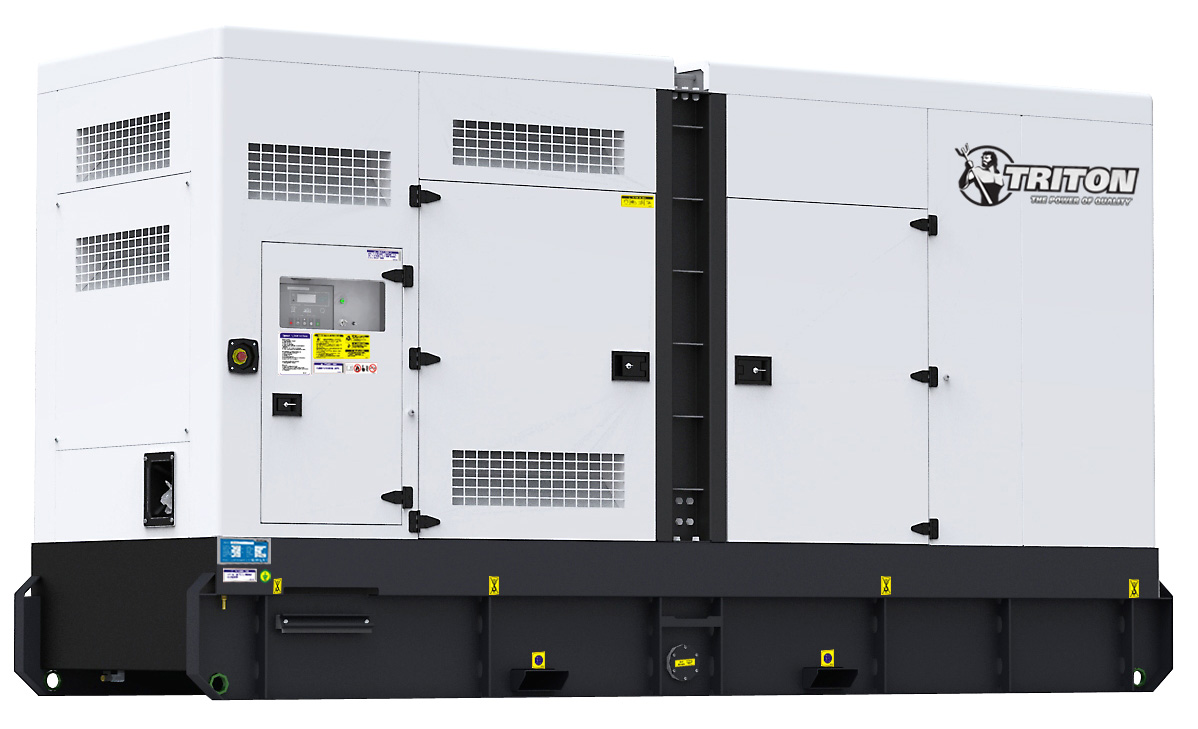

500 kW Triton Diesel Generator TP-P500-T1  International Use
  • Export supportconfiguration and shipping quotes for your destination
  • Engineering supporthelp with sizing, voltage and configuration
  • 4 technical documentsspec sheet, engine data, alternator data, brochure
60 Hz International Tier 1

500 kW Triton Diesel Generator TP-P500-T1 International Use

SKU TP-P500-T1

Standby rating

501 kW 626 kVA

Prime rating

455 kW 569 kVA

Engine
Perkins 2506A-E15TAG4
Alternator
Leroy Somer LSA47.2M7
Control panel
DSE7420
Fuel
Diesel
Frequency / phase
60 Hz · 3-phase
Voltages listed
120/208 · 277/480 · 120/240
Configuration
Enclosed · Open
Fuel tank
8-10 Hr

Market compatibility

International market

Emissions: Tier 1 Rated, for International Use Only

Triton International generators are not compliant for use in the United States or Canada due to the emissions status.

Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.

Destination check

Is this generator right for your destination?

Tell us where it will be used and what it will power. We compare your answers with what is listed for this model, and our engineers confirm the rest before you order.

  • Choose a destination to see what is listed for this model.

Markets with a verified 60 Hz grid: Middle East (1) · Caribbean & Central America (7) · Latin America (5) · Asia-Pacific (1) · Countries A–Z

Overview

Product overview

The TP-P500-T1 is a 626 kVA / 501 kW standby, 569 kVA / 455 kW prime diesel generator for international markets.

It uses a Perkins 2506A-E15TAG4 engine, a Leroy Somer LSA47.2M7 alternator and a DSE7420 control panel.

It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.

  • Powered by Perkins 2506A-E15TAG4
  • Emissions: Tier 1 Rated, for International Use Only
  • 60 Hz Power Rating at 3 Phase
  • Standby Power Rating: 626 kVA / 501 kW
  • Prime Power Rating: 569 kVA / 455 kW
  • Fuel Capacity 8-10 Hr
Read the full product description

We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.

Our TP-P500-T1 provides a standby rating of 501kW / 626kVA and a prime rating of 455kW / 569kVA. The TP-P500-T1 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 2506A-E15TAG4, this generator set will provide you with Tier 1 EPA standards and also provide unsurpassed performance and reliability.

The TP-P500-T1 includes just a few of the following features:

Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed versions
Sub-Base Tank 8-10 Hours

Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.

Why choose this model

  • Perkins 2506A-E15TAG4 engineEngine data sheet included below
  • Standby & prime rated501 kW / 626 kVA standby · 455 kW / 569 kVA prime
  • 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
  • Enclosed or OpenConfigurations available for this model
  • Leroy Somer LSA47.2M7 alternatorAlternator specifications included below
  • DSE7420 control panelControl panel listed for this model

Typical applications

  • Hotels
  • Marinas
  • Factories
  • Warehousing
  • Government Buildings
  • Island Power

As named in the Triton product description.

Listed in our industry catalogs: Manufacturing

Technical specifications

Specifications

Values are shown exactly as published. Anything not listed is marked “Not specified”.

Download full specifications
Generator
Triton Model TP-P500-T1
kVA / kW Standby 626 kVA / 501 kW
kVA / kW Prime 569 kVA / 455 kW
Engine
Engine Brand Perkins
Engine Model 2506A-E15TAG4
Alternator
Alternator Brand Leroy Somer
Alternator Model LSA47.2M7
Electrical
Voltages Available 120/208, 277/480, 120/240
Fuel System
Fuel Tank Capacity 8-10 Hr
Control
Control Panel DSE7420
Physical Configuration
Models Available Enclosed, Open
Physical
DimensionsNot specified
WeightNot specified
ConfigurationsEnclosed, Open

Dimensions and weight are not published for this model. Ask for the data sheet.

Compliance & market
EmissionsTier 1 Rated, for International Use Only
MarketInternational market
Configure this generator

Choose your configuration

Options are the ones published for this model. Fuel tank and transfer switch choices are confirmed in your quote.

Frequency
Voltage
Configuration
Duty
Transfer switch needed?
Engineering documents

Technical documents

Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.

Similar generators

Compare with similar models

Same market and frequency, nearest in size. Tick up to three to compare with this model.

Comparison of TP-P500-T1 with similar models
ModelTP-P500-T1This model TP-D500-T1TP-D450-T1TP-D550-T1TP-D400-T1
Standby501 kW / 626 kVA500 kW / 625 kVA462 kW / 578 kVA557 kW / 697 kVA405 kW / 507 kVA
Prime455 kW / 569 kVA455 kW / 569 kVA419 kW / 524 kVA507 kW / 634 kVA355 kW / 444 kVA
EnginePerkins 2506A-E15TAG4Doosan DP158LDDoosan DP158LCDoosan DP180LADoosan P158LE
AlternatorLeroy Somer LSA47.2M7Leroy Somer TAL0473ELeroy Somer TAL0473CLeroy Somer TAL0473ELeroy Somer TAL0473A
Control panelDSE7420DSE7320DSE7320DSE7320DSE7320
Frequency60 Hz60 Hz60 Hz60 Hz60 Hz
Voltages120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240
ConfigurationEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, Open
Fuel tank8-10 Hr970 Liters (Enclosed)970 Liters (Enclosed)970 Liters (Enclosed)970 Liters (Enclosed)
MarketInternational marketInternational marketInternational marketInternational marketInternational market
