60 Hz Tier 4 Final Mobile Rental grade

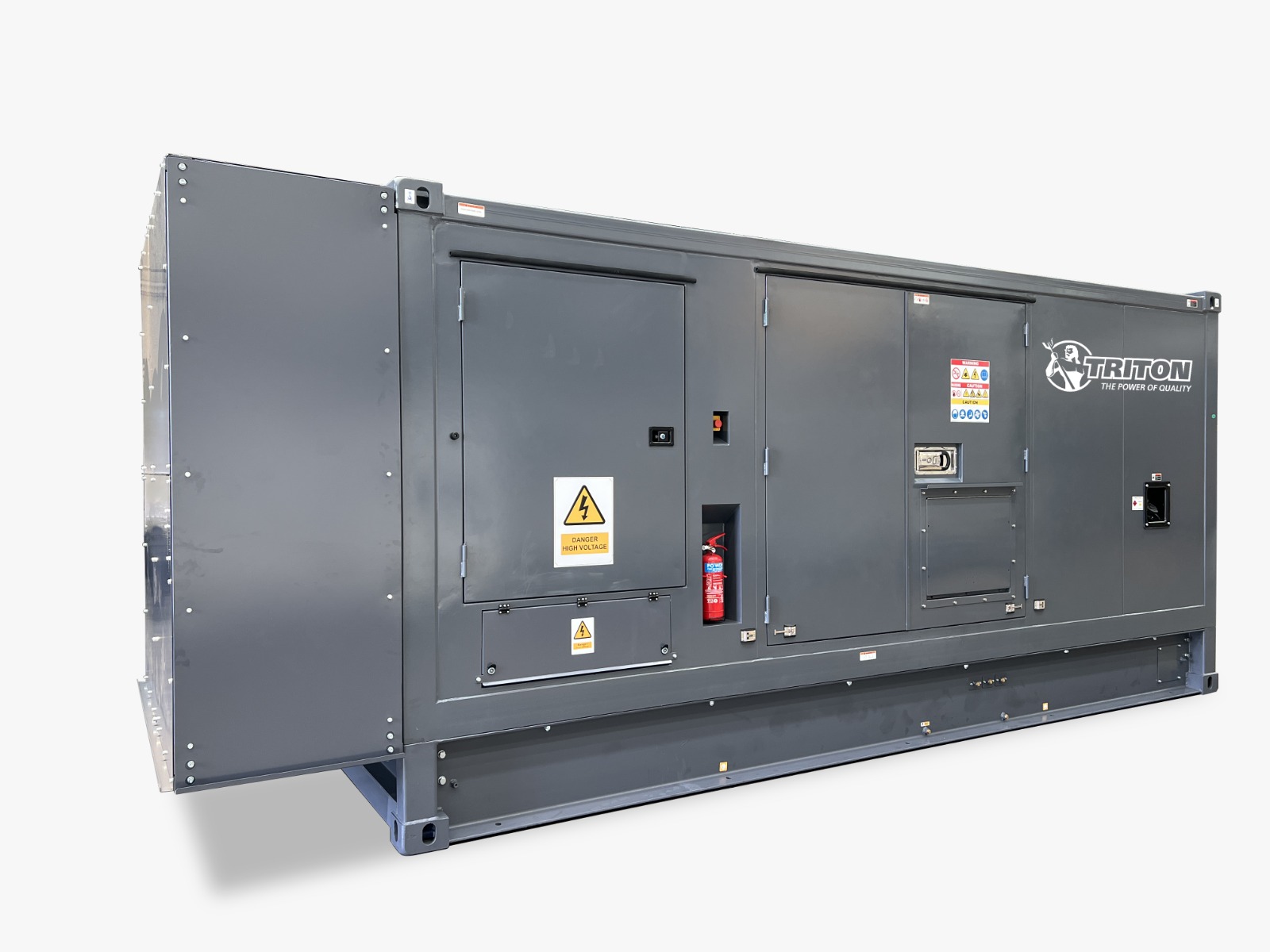

625 kVA Triton Rental Grade Generator TP-RV625-T4F-RENTAL Tier 4 Rental
SKU TP-RV625-T4F-RENTAL
- Engine
- Volvo TWD1672GE
- Alternator
- Leroy Somer LSA47.3M8
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- 1000L / 264.5Gal
Market compatibility
Tier 4 Final
Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications · Tier 4 Rental
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Overview
Product overview
The TP-RV625-T4F-RENTAL is a 688 kVA / 550 kW standby, 625 kVA / 500 kW prime diesel generator with a Tier 4 Final emissions configuration.
It uses a Volvo TWD1672GE engine, a Leroy Somer LSA47.3M8 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Volvo TWD1672GE
- Emissions: Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 688 kVA / 550 kW
- Prime Power Rating: 625 kVA / 500 kW
- Fuel Capacity 1000L / 264.5Gal
Read the full product description
Global Generator Supply offers a complete line of mobile diesel generators from 15 to 1500 kVA. Quiet and Dependable, our generators power everything from construction to entertainment to natural disaster recovery to military applications. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-RV625-T4F-RENTAL provides a standby rating of 550kW / 688kVA and a prime rating of 500kW / 625kVA. The TP-RV625-T4F-RENTAL is built to rugged specifications and provides the power where and when you need it. By utilizing a Volvo TWD1672GE, this generator set will provide you with the stringent Tier 4 EPA standards and also provide unsurpassed performance and reliability.
The TP-RV625-T4F-RENTAL includes just a few of the following features:
- Programmable Control Panel
- Easy Interface and Serviceability Access
- Quiet Operation (as low as 70 dBA)
- Heavy-Duty Chassis designed to handle any terrain or location
- 125% Full Containment for Fluids
- Available in Open, Enclosed, and Mobile
- Sub-Base Tank up to 45 hours
Triton Tier 4 generators are EPA and CARB compliant and built on a proven platform of emissions control technologies. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standard models ranging from 15 kVA to 1500 kVA, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Volvo TWD1672GE engineEngine data sheet included below
- Standby & prime rated688 kVA / 550 kW standby · 625 kVA / 500 kW prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA47.3M8 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
Listed in our industry catalogs: Construction, Customized builds, Data centers, Healthcare, Manufacturing, Military & government, Oil & gas
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-RV625-T4F-RENTAL |
|---|---|
| kVA / kW Standby | 688 kVA / 550 kW |
| kVA / kW Prime | 625 kVA / 500 kW |
| Engine Brand | Volvo |
|---|---|
| Engine Model | TWD1672GE |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA47.3M8 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | 1000L / 264.5Gal |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications |
|---|---|
| Market | Tier 4 Final |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
