800 kW Triton Diesel Generator TP-C800-T2-60 Tier 2
TP-C800-T2-60
- Standby
- 800 kW / 1,000 kVA
- Prime
- 727 kW / 909 kVA
Engine Cummins
Commercial & Industrial Power Equipment Worldwide
SKU TP-P750-T2-UL
Market compatibility
USA EPA-certified
Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications.
Our engineering team is confirming some details on this page (standby kva). Please confirm model and ratings with sales before ordering.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.

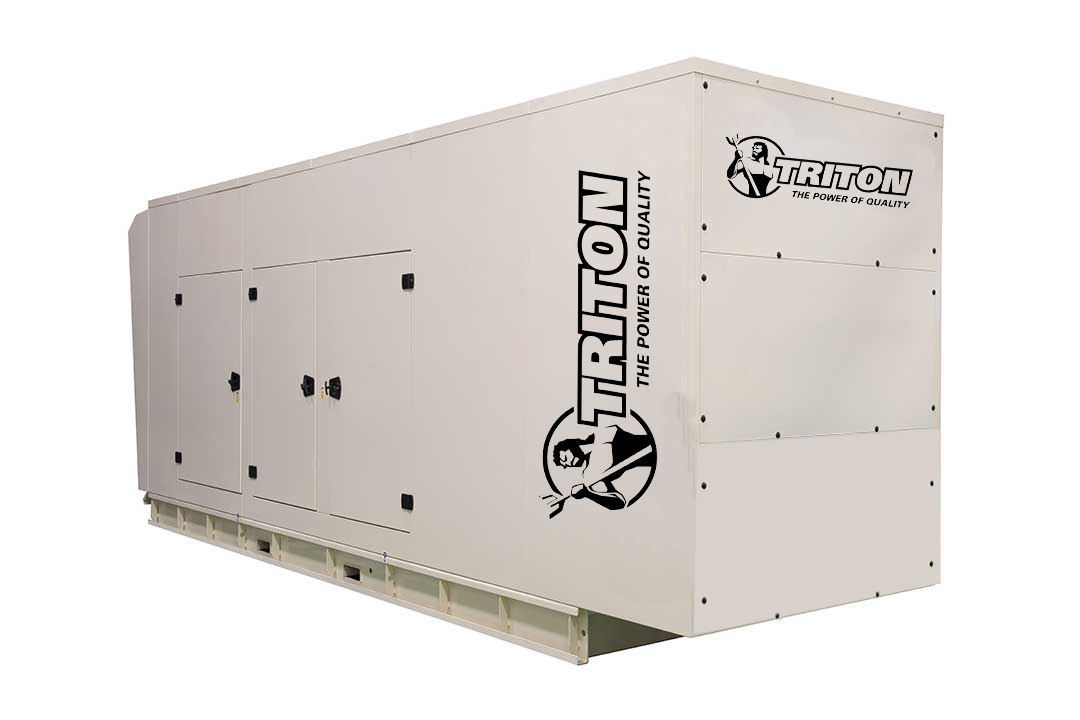

The TP-P750-T2-UL is a 937.5 kVA / 750 kW standby, 844 kVA / 675 kW prime diesel generator, EPA-certified for the US market.
It uses a Perkins 2806C-E18TTAG7 engine, a Leroy Somer TAL049 alternator and a DSE7310 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
Global Generator Supply provides Emergency Stationary generators that are certified to Tier 4i, 3 and 2 depending upon the generator rating required. We provide UL2200, CSA and other certifications. Triton can build nearly any type of generator for your requirements, including both gaseous and diesel generators. Further, we maintain a stock of generators built to standard specifications for immediate shipment, including trailers, transfer switches and fuel tanks.
Triton EPA Generators are to exacting standards for the US and Canadian markets. We provide options for everything from hurricane zones to the harsh environment of the far north. Triton Generators are used at a variety of locations including government facilities, hotels, factories, medical facilities and grocery stores.
Our TP-P750-T2-UL provides a standby rating of 750kW / 937kVA and a prime rating of 675kW / 844kVA. The TP-P750-T2-UL is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins engine model 2806C-E18TTAG7, this generator set will provide you with the EPA standards and provides unsurpassed performance and reliability.
The TP-P750-T2-UL includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed
UL 2200 Listed
Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Listed in our industry catalogs: Construction, Customized builds, Data centers, Healthcare, Manufacturing, Oil & gas
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P750-T2-UL |
|---|---|
| kVA / kW Standby | 937.5 kVA / 750 kW |
| kVA / kW Prime | 844 kVA / 675 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 2806C-E18TTAG7 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | TAL049 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | n/a |
|---|
| Control Panel | DSE7310 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 2 EPA Certified Emergency Stationary Applications |
|---|---|
| Market | USA EPA-certified |
| UL 2200 | Listed |
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
Same market and frequency, nearest in size. Tick up to three to compare with this model.
TP-C800-T2-60
Engine Cummins
TP-P600-T2
Engine Perkins
TP-P600-T3-UL
Engine Perkins
TP-P550-T3
Engine Perkins
| Model | TP-P750-T2-ULThis model | TP-C800-T2-60 | TP-P600-T2 | TP-P600-T3-UL | TP-P550-T3 |
|---|---|---|---|---|---|
| Standby | 750 kW / 937.5 kVA | 800 kW / 1,000 kVA | 600 kW / 750 kVA | 600 kW / 750 kVA | 550 kW / 687 kVA |
| Prime | 675 kW / 844 kVA | 727 kW / 909 kVA | 540 kW / 675 kVA | 545 kW / 681 kVA | 500 kW / 625 kVA |
| Engine | Perkins 2806C-E18TTAG7 | Cummins QSK23-G7 | Perkins 2806C-E18TAG3 | Perkins 2806C-E18TAG3 | Perkins 2506C-E15TAG4 |
| Alternator | Leroy Somer TAL049 | Leroy Somer LSA49.3 M6 | Leroy Somer LSA 47.2 M8 | Leroy Somer TAL047.3E | Leroy Somer LSA 47.2 M7 |
| Control panel | DSE7310 | DSE-7420 | DSE7420 | DSE7420 | DSE7420 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Voltages | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | — | — | — | — | — |
| Market | USA EPA-certified | USA EPA-certified | USA EPA-certified | USA EPA-certified | USA EPA-certified |
Tick “Compare” on a model above to add it to this table.
Our team can help configure it for your destination, and quote documentation and shipping on request, or you can use your own forwarder.
