Commercial & Industrial Power Equipment Worldwide

Equipment for use in
810 kVA Triton Diesel Generator TP-C800-T1-S-50 International Use
  • Export supportconfiguration and shipping quotes for your destination
  • Engineering supporthelp with sizing, voltage and configuration
  • 3 technical documentsspec sheet, alternator data, brochure
50 Hz International Tier 1

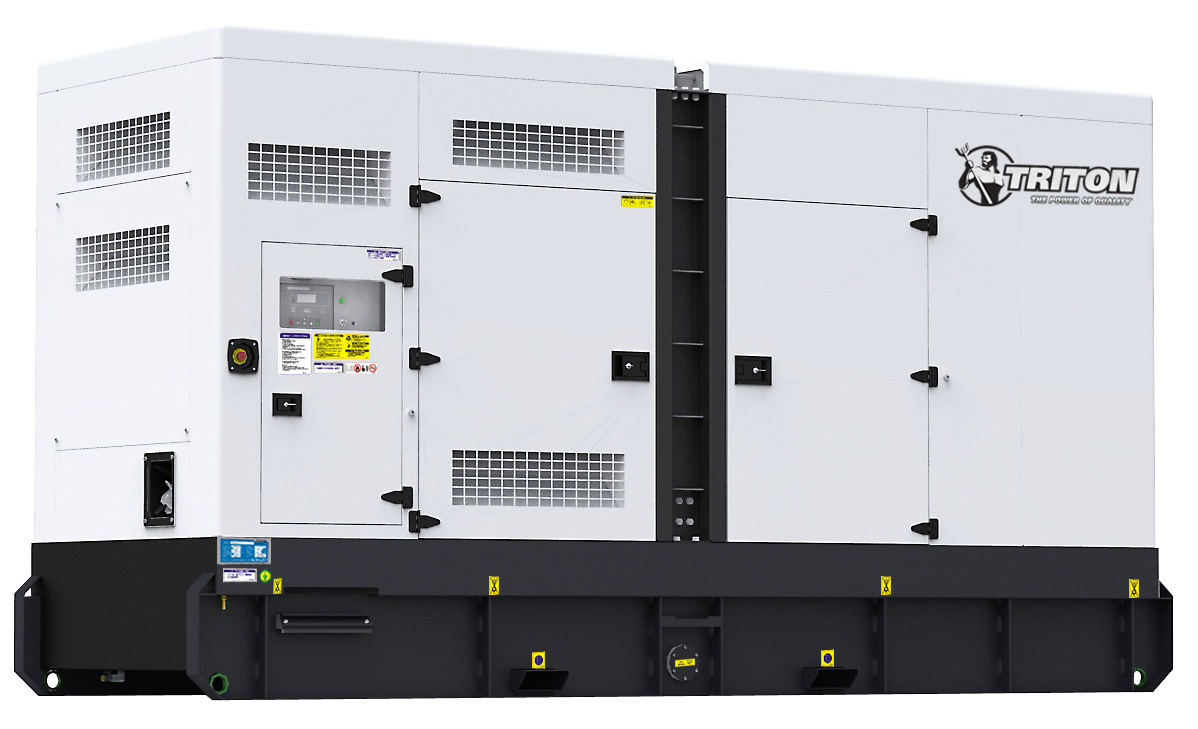

810 kVA Triton Diesel Generator TP-C800-T1-S-50 International Use

SKU TP-C800-T1-S-50

Standby rating

900 kVA 720 kW

Prime rating

810 kVA 648 kW

Engine
Cummins QSK23-G3
Alternator
Leroy Somer LSA49.3M6
Control panel
DSE7420
Fuel
Diesel
Frequency / phase
50 Hz · 3-phase
Voltages listed
120/208 · 277/480
Configuration
Enclosed · Open
Fuel tank
Not specified

Market compatibility

International market

Emissions: Tier 1 Rated, for International Use Only

Triton International generators are not compliant for use in the United States or Canada due to the emissions status.

Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.

Destination check

Is this generator right for your destination?

Tell us where it will be used and what it will power. We compare your answers with what is listed for this model, and our engineers confirm the rest before you order.

  • Choose a destination to see what is listed for this model.

Markets with a verified 50 Hz grid: Africa (13) · Middle East (5) · Caribbean & Central America (1) · Latin America (3) · Asia-Pacific (7) · Countries A–Z

Overview

Product overview

The TP-C800-T1-S-50 is a 900 kVA / 720 kW standby, 810 kVA / 648 kW prime diesel generator for international markets.

It uses a Cummins QSK23-G3 engine, a Leroy Somer LSA49.3M6 alternator and a DSE7420 control panel.

It is listed at 50 Hz, 3-phase, with voltages 120/208 and 277/480, in enclosed or open configurations.

  • Powered by Cummins QSK23-G3
  • Emissions: Tier 1 Rated, for International Use Only
  • 50 Hz Power Rating at 3 Phase
  • Standby Power Rating: 900 kVA / 720 kW
  • Prime Power Rating: 810 kVA / 648 kW
Read the full product description

We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.

Our TP-C800-T1-S-50 provides a standby rating of 720kW / 900kVA and a prime rating of 648kW / 810kVA. The TP-C800-T1-S-50 is built to rugged specifications and provides the power where and when you need it. By utilizing a Cummins QSK23-G3, this generator set will provide you with Tier 1 EPA standards and also provide unsurpassed performance and reliability.

The TP-C800-T1-S-50 includes just a few of the following features:

Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed versions
Sub-Base Tank 8-10 Hours

Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.

Why choose this model

  • Cummins QSK23-G3 engineEngine make and model
  • Standby & prime rated900 kVA / 720 kW standby · 810 kVA / 648 kW prime
  • 50 Hz, 3-phaseVoltages listed: 120/208, 277/480
  • Enclosed or OpenConfigurations available for this model
  • Leroy Somer LSA49.3M6 alternatorAlternator specifications included below
  • DSE7420 control panelControl panel listed for this model

Typical applications

  • Hotels
  • Marinas
  • Factories
  • Warehousing
  • Government Buildings
  • Island Power

As named in the Triton product description.

Listed in our industry catalogs: Construction, Customized builds, Data centers, Healthcare, Manufacturing, Military & government, Oil & gas

Technical specifications

Specifications

Values are shown exactly as published. Anything not listed is marked “Not specified”.

Download full specifications
Generator
Triton Model TP-C800-T1-S-50
kVA / kW Standby 900 kVA / 720 kW
kVA / kW Prime 810 kVA / 648 kW
Engine
Engine Brand Cummins
Engine Model QSK23-G3
Alternator
Alternator Brand Leroy Somer
Alternator Model LSA49.3M6
Electrical
Voltages Available 120/208, 277/480
Fuel System
Fuel Tank Capacity n/a
Control
Control Panel DSE7420
Physical Configuration
Models Available Enclosed, Open
Physical
DimensionsNot specified
WeightNot specified
ConfigurationsEnclosed, Open

Dimensions and weight are not published for this model. Ask for the data sheet.

Compliance & market
EmissionsTier 1 Rated, for International Use Only
MarketInternational market
Configure this generator

Choose your configuration

Options are the ones published for this model. Fuel tank and transfer switch choices are confirmed in your quote.

Frequency
Voltage
Configuration
Duty
Transfer switch needed?
Engineering documents

Technical documents

Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.

Similar generators

Compare with similar models

Same market and frequency, nearest in size. Tick up to three to compare with this model.

Comparison of TP-C800-T1-S-50 with similar models
ModelTP-C800-T1-S-50This model TP-P880-T1-50TP-P770-T1-50TP-P825-T1-50TP-P990-T1-50
Standby900 kVA / 720 kW880 kVA / 704 kW850 kVA / 678 kW825 kVA / 660 kW990 kVA / 792 kW
Prime810 kVA / 648 kW800 kVA / 640 kW771 kVA / 617 kW750 kVA / 600 kW900 kVA / 720 kW
EngineCummins QSK23-G3Perkins 4006-23TAG3APerkins 2806A-E18TTAG5Perkins 4006-23TAG2APerkins 4008TAG1A
AlternatorLeroy Somer LSA49.3M6Leroy SomerLeroy Somer LSA49.3M8Leroy SomerLeroy Somer LSA49.3L9
Control panelDSE7420DSE7420DSE7420DSE7420DSE7420
Frequency50 Hz50 Hz50 Hz50 Hz50 Hz
Voltages120/208, 277/480110/220, 240/380110/220, 240/380110/220, 240/380110/220, 240/380
ConfigurationEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, Open
Fuel tank—8-10 Hr—8-10 Hr8-10 Hr
MarketInternational marketInternational marketInternational marketInternational marketInternational market
