60 Hz Tier 4 Final Mobile
13.5 kW Triton Diesel Generator TP-K15-T4F Tier 4 Final
SKU TP-K15-T4F
- Engine
- Kubota V1505-E4BG1
- Alternator
- Leroy Somer LSA40M5
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- 110L / 29 Gal
Market compatibility
Tier 4 Final
Tier 4 Final EPA-Certified for Nonroad Applications
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Overview
Product overview

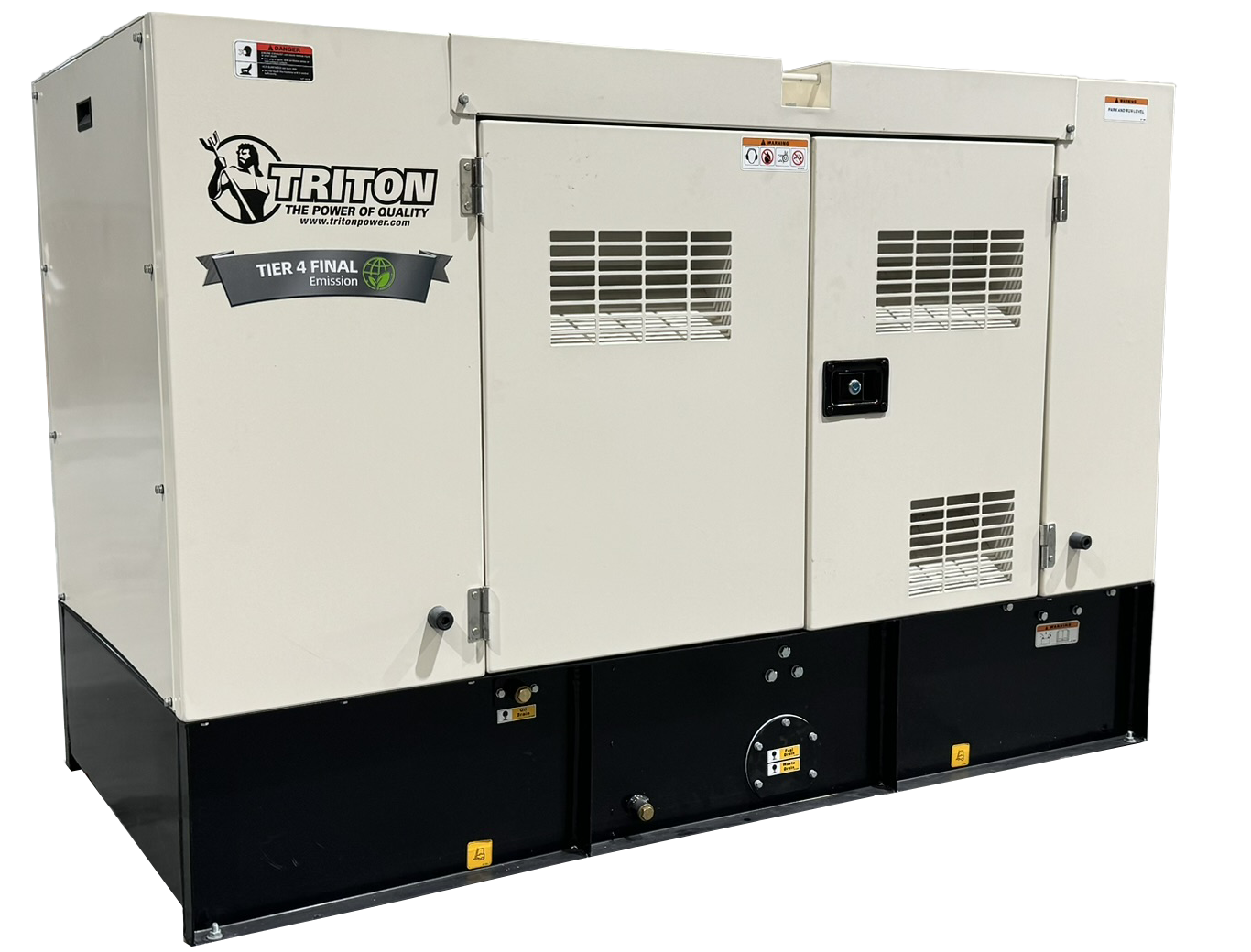

The TP-K15-T4F is a 16.5 kVA / 13.5 kW standby, 15.5 kVA / 12.5 kW prime diesel generator with a Tier 4 Final emissions configuration.
It uses a Kubota V1505-E4BG1 engine, a Leroy Somer LSA40M5 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Kubota V1505-E4BG1
- Emissions: Tier 4 Final EPA-Certified for Nonroad Applications
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 16.5 kVA / 13.5 kW
- Prime Power Rating: 15.5 kVA / 12.5 kW
- Fuel Capacity 110L / 29 Gal
- Leroy Somer Alternator LSA40S4
Read the full product description
Global Generator Supply offers a complete line of mobile diesel generators from 15 to 1500 kVA. Quiet and Dependable, our generators power everything from construction to entertainment to natural disaster recovery to military applications. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-K15-T4F provides a standby rating of 13.5kW / 16.5kVA and a prime rating of 12.5kW / 15.5kVA. The TP-K15-T4F is built to rugged specifications and provides the power where and when you need it. By utilizing a Kubota V1505-E4BG1, this generator set will provide you with the stringent Tier 4 EPA standards and also provide unsurpassed performance and reliability.
The TP-K15-T4F includes just a few of the following features:
- Programmable Control Panel
- Easy Interface and Serviceability Access
- Quiet Operation (as low as 66 dBA)
- Heavy-Duty Chassis designed to handle any terrain or location
- 125% Full Containment for Fluids
- Available in Open, Enclosed, and Mobile
- Sub-Base Tank up to 110 liters
Triton Tier 4 generators are EPA and CARB compliant and built on a proven platform of emissions control technologies. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standard models ranging from 15 kVA to 1500 kVA, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Kubota V1505-E4BG1 engineEngine data sheet included below
- Standby & prime rated13.5 kW / 16.5 kVA standby · 12.5 kW / 15.5 kVA prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA40M5 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
Listed in our industry catalogs: Military & government, Restaurants & hospitality
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-K15-T4F |
|---|---|
| kVA / kW Standby | 16.5 kVA / 13.5 kW |
| kVA / kW Prime | 15.5 kVA / 12.5 kW |
| Engine Brand | Kubota |
|---|---|
| Engine Model | V1505-E4BG1 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA40M5 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | 110L / 29 Gal |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 4 Final EPA-Certified for Nonroad Applications |
|---|---|
| Market | Tier 4 Final |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
