60 Hz Tier 4 Final Mobile
22 kW Triton Diesel Generator TP-K25-T4F Tier 4 Final
TP-K25-T4F
- Standby
- 22 kW / 28 kVA
- Prime
- 20 kW / 25 kVA
Engine Kubota
- Export supportconfiguration and shipping quotes for your destination
- Engineering supporthelp with sizing, voltage and configuration
- 4 technical documentsspec sheet, engine data, alternator data, brochure
60 Hz Tier 4 Final Mobile Rental grade

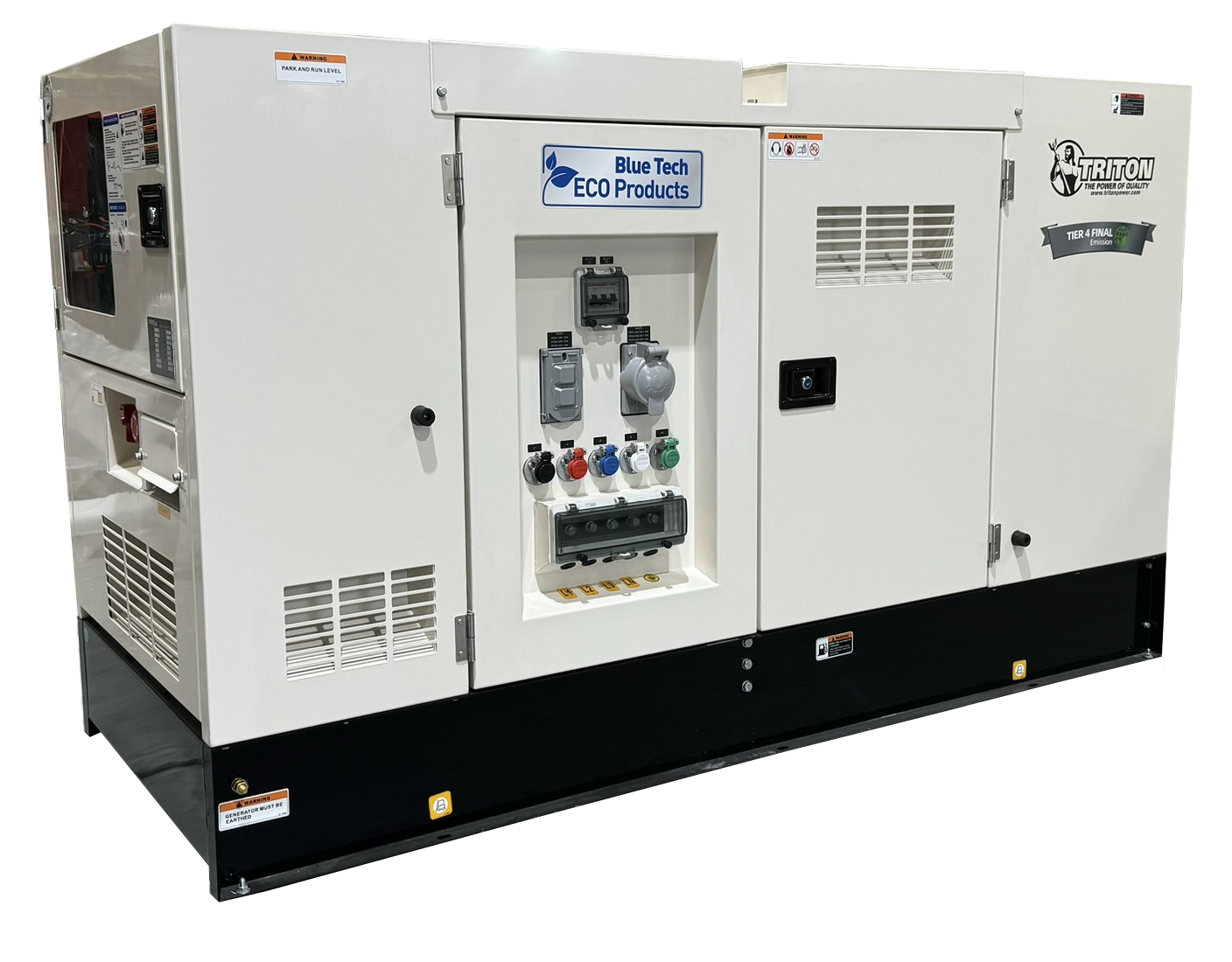

25 kVA Triton Rental Grade Generator TP-RK25-T4F-RENTAL Tier 4 Rental
SKU TP-RK25-T4F-RENTAL
- Engine
- Kubota D1803-CR-TIE4BG
- Alternator
- Leroy Somer LSA42.3VS1
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- 140L / 36.9 Gal
Market compatibility
Tier 4 Final
Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications · Tier 4 Rental
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Overview
Product overview
The TP-RK25-T4F-RENTAL is a 28 kVA / 22 kW standby, 25 kVA / 20 kW prime diesel generator with a Tier 4 Final emissions configuration.
It uses a Kubota D1803-CR-TIE4BG engine, a Leroy Somer LSA42.3VS1 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Kubota D1803-CR-TIE4BG
- Emissions: Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 28 kVA / 22 kW
- Prime Power Rating: 25 kVA / 20 kW
- Fuel Capacity 140L / 36.9 Gal
Read the full product description
Global Generator Supply offers a complete line of mobile diesel generators from 15 to 1500 kVA. Quiet and Dependable, our generators power everything from construction to entertainment to natural disaster recovery to military applications. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-RK25-T4F-RENTAL provides a standby rating of 22kW / 28kVA and a prime rating of 20kW / 25kVA. The TP-RK25-T4F-RENTAL is built to rugged specifications and provides the power where and when you need it. By utilizing a Kubota D1803-CR-TIE4BG, this generator set will provide you with the stringent Tier 4 EPA standards and also provide unsurpassed performance and reliability.
The TP-RK25-T4F-RENTAL includes just a few of the following features:
- Programmable Control Panel
- Easy Interface and Serviceability Access
- Quiet Operation (as low as 66 dBA)
- Heavy-Duty Chassis designed to handle any terrain or location
- 125% Full Containment for Fluids
- Available in Open, Enclosed, and Mobile
- Sub-Base Tank up to 45 hours
Triton Tier 4 generators are EPA and CARB compliant and built on a proven platform of emissions control technologies. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standard models ranging from 15 kVA to 1500 kVA, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Kubota D1803-CR-TIE4BG engineEngine data sheet included below
- Standby & prime rated28 kVA / 22 kW standby · 25 kVA / 20 kW prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA42.3VS1 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
Listed in our industry catalogs: Military & government, Restaurants & hospitality
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-RK25-T4F-RENTAL |
|---|---|
| kVA / kW Standby | 28 kVA / 22 kW |
| kVA / kW Prime | 25 kVA / 20 kW |
| Engine Brand | Kubota |
|---|---|
| Engine Model | D1803-CR-TIE4BG |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA42.3VS1 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | 140L / 36.9 Gal |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 4 Final EPA-Certified for Mobile “NonRoad” Applications |
|---|---|
| Market | Tier 4 Final |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Complete your generator package
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 140L / 36.9 Gal. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerThis model is a mobile configuration. Matched to this unit on request View trailers
- Parts & service itemsSearch parts and documents that mention the D1803-CR-TIE4BG. Confirm your engine serial number when ordering Find parts
Similar generators
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
-
- 60 Hz Tier 4 Final Mobile
30 kW Triton Diesel Generator TP-K30-T4F Tier 4 Final
TP-K30-T4F
- Standby
- 30 kW / 38 kVA
- Prime
- 28 kW / 35 kVA
Engine Kubota
- 60 Hz Tier 4 Final Mobile Rental grade
35 kVA Triton Rental Grade Generator TP-RK35-T4F-RENTAL Tier 4 Rental
TP-RK35-T4F-RENTAL
- Standby
- 30 kW / 38 kVA
- Prime
- 28 kW / 35 kVA
Engine Kubota
- 60 Hz Tier 4 Final Mobile
13.5 kW Triton Diesel Generator TP-K15-T4F Tier 4 Final
TP-K15-T4F
- Standby
- 13.5 kW / 16.5 kVA
- Prime
- 12.5 kW / 15.5 kVA
Engine Kubota
| Model | TP-RK25-T4F-RENTALThis model | TP-K25-T4F | TP-K30-T4F | TP-RK35-T4F-RENTAL | TP-K15-T4F |
|---|---|---|---|---|---|
| Standby | 28 kVA / 22 kW | 28 kVA / 22 kW | 38 kVA / 30 kW | 38 kVA / 30 kW | 16.5 kVA / 13.5 kW |
| Prime | 25 kVA / 20 kW | 25 kVA / 20 kW | 35 kVA / 28 kW | 35 kVA / 28 kW | 15.5 kVA / 12.5 kW |
| Engine | Kubota D1803-CR-TIE4BG | Kubota D1803-CR-TIE4BG | Kubota V2403-CR-TIE4BG | Kubota V2403-CR-TIE4BG | Kubota V1505-E4BG1 |
| Alternator | Leroy Somer LSA42.3VS1 | Leroy Somer LSA42.3VS1 | Leroy Somer LSA42.3S5 | Leroy Somer LSA42.3S5 | Leroy Somer LSA40M5 |
| Control panel | DSE7420 | DSE7420 | DSE7420 | DSE7420 | DSE7420 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Voltages | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | 140L / 36.9 Gal | 140L / 37Gal | 210L / 55.5Gal | 210L / 55.5Gal | 110L / 29 Gal |
| Market | Tier 4 Final | Tier 4 Final | Tier 4 Final | Tier 4 Final | Tier 4 Final |
Tick “Compare” on a model above to add it to this table.
