- Export supportconfiguration and shipping quotes for your destination
- Engineering supporthelp with sizing, voltage and configuration
- 6 technical documentsspec sheet, engine data, alternator data, brochure

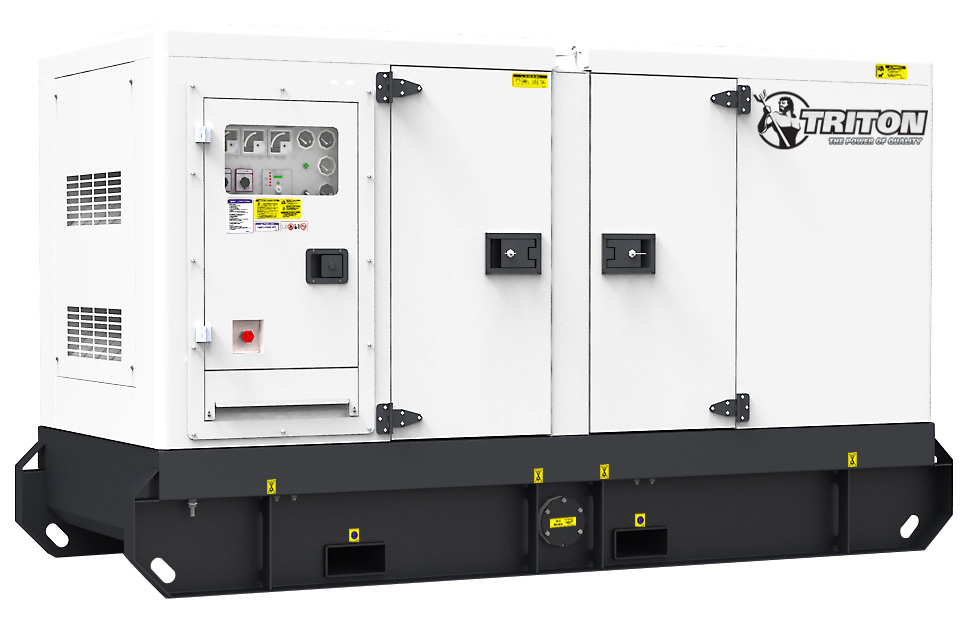

150 kW Triton Diesel Generator TP-P150-T1 International Use
SKU TP-P150-T1
- Engine
- Perkins 1106A-70TAG2
- Alternator
- Leroy Somer LSA44.3L10, TAL044J
- Control panel
- DSE7420, DSE7320
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- 8-10 Hr
Market compatibility
Eligibility being confirmed
Emissions: Tier 1 Rated, for International Use Only
Triton International generators are not compliant for use in the United States or Canada due to the emissions status.
Our team is confirming which markets this unit can be used in. Contact sales before ordering.
Our engineering team is confirming some details on this page (market eligibility). Please confirm model and ratings with sales before ordering.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Product overview
The TP-P150-T1 is a 187 kVA / 150 kW standby, 170 kVA / 135 kW prime diesel generator.
It uses a Perkins 1106A-70TAG2 engine, a Leroy Somer LSA44.3L10, TAL044J alternator and a DSE7420, DSE7320 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Perkins 1106A-70TAG2
- Emissions: Tier 1 Rated, for International Use Only
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 187 kVA / 150 kW
- Prime Power Rating: 170 kVA / 135 kW
- Fuel Capacity 8-10 Hr
Read the full product description
We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-P150-T1 provides a standby rating of 150kW / 187kVA and a prime rating of 135kW / 170kVA. The TP-P150-T1 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 1106A-70TAG2, this generator set will provide you with Tier 1 EPA standards and also provide unsurpassed performance and reliability.
The TP-P150-T1 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed versions
Sub-Base Tank 8-10 Hours
Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Perkins 1106A-70TAG2 engineEngine data sheet included below
- Standby & prime rated150 kW / 187 kVA standby · 135 kW / 170 kVA prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA44.3L10, TAL044J alternatorAlternator specifications included below
- DSE7420, DSE7320 control panelControl panel listed for this model
Typical applications
- Hotels
- Marinas
- Factories
- Warehousing
- Government Buildings
- Island Power
As named in the Triton product description.
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P150-T1 |
|---|---|
| kVA / kW Standby | 187 kVA / 150 kW |
| kVA / kW Prime | 170 kVA / 135 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 1106A-70TAG2 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA44.3L10, TAL044J |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | 8-10 Hr |
|---|
| Control Panel | DSE7420, DSE7320 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 1 Rated, for International Use Only |
|---|---|
| Market | Eligibility being confirmed |
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications v1 Generator set specificationsDownload
- Generator Set Specifications v2 Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications v1 Alternator specificationsDownload
- Alternator Specifications v2 Alternator specificationsDownload
- Product Brochure Product brochureDownload
Parts listed for 1106A-70TAG2
These parts name this engine model in their own description. Confirm your engine serial number when ordering.
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 8-10 Hr. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts for the 1106A-70TAG23 parts name this engine model in their own description. Compatible with this engine See compatible parts
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
- 60 Hz Confirming
200 kW Triton Diesel Generator TP-P200-T3 EPA Certified
TP-P200-T3
- Standby
- 200 kW / 250 kVA
- Prime
- 180 kW / 225 kVA
Engine Perkins
Market eligibility being confirmed
- 60 Hz Confirming
65 kW Triton Diesel Generator TP-P65-T3 EPA Certified
TP-65-T3
- Standby
- 65 kW / 81 kVA
- Prime
- 59 kW / 74 kVA
Engine Perkins
Market eligibility being confirmed
- 60 Hz Confirming UL2200
800 kW Triton Diesel Generator TP-D800-T2-UL Tier 2 – UL Listed
TP-D800-T2-UL
- Standby
- 800 kW / 1,000 kVA
- Prime
- 728 kW / 910 kVA
Engine Doosan
Market eligibility being confirmed
- 60 Hz Confirming UL2200
900 kW Triton Diesel Generator TP-D900-T2-UL Tier 2 – UL Listed
TP-D900-T2-UL
- Standby
- 898 kW / 1,123 kVA
- Prime
- 812 kW / 1,015 kVA
Engine Doosan
Market eligibility being confirmed
| Model | TP-P150-T1This model | TP-P200-T3 | TP-65-T3 | TP-D800-T2-UL | TP-D900-T2-UL |
|---|---|---|---|---|---|
| Standby | 150 kW / 187 kVA | 200 kW / 250 kVA | 65 kW / 81 kVA | 800 kW / 1,000 kVA | 898 kW / 1,123 kVA |
| Prime | 135 kW / 170 kVA | 180 kW / 225 kVA | 59 kW / 74 kVA | 728 kW / 910 kVA | 812 kW / 1,015 kVA |
| Engine | Perkins 1106A-70TAG2 | Perkins 1106D-E70TAG5 | Perkins 1104D-E44TG1 | Doosan DP222CB | Doosan DP222CC |
| Alternator | Leroy Somer LSA44.3L10, TAL044J | Leroy Somer LSA46.3S4 | — | Leroy Somer TAL049C | Leroy Somer TAL049C |
| Control panel | DSE7420, DSE7320 | DSE7420 | — | DSE | DSE |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Voltages | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 | 120/208, 277/480, 120/240 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | 8-10 Hr | — | — | 1100 Liters (Enclosed) | 1100 Liters (Enclosed) |
| Market | Eligibility being confirmed | Eligibility being confirmed | Eligibility being confirmed | Eligibility being confirmed | Eligibility being confirmed |
Tick “Compare” on a model above to add it to this table.
