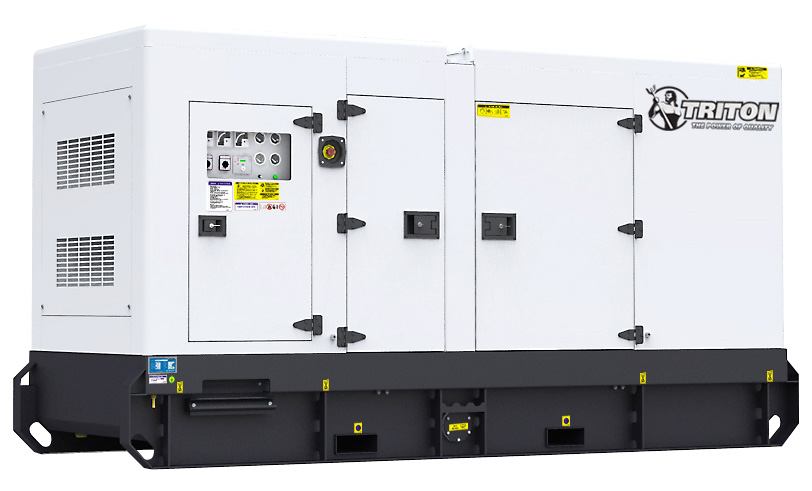

200 kW Triton Diesel Generator TP-P200-T3 EPA Certified
  • Export supportconfiguration and shipping quotes for your destination
  • Engineering supporthelp with sizing, voltage and configuration
  • 4 technical documentsspec sheet, engine data, alternator data, brochure
60 Hz Confirming Tier 3

200 kW Triton Diesel Generator TP-P200-T3 EPA Certified

SKU TP-P200-T3

Standby rating

200 kW 250 kVA

Prime rating

180 kW 225 kVA

Engine
Perkins 1106D-E70TAG5
Alternator
Leroy Somer LSA46.3S4
Control panel
DSE7420
Fuel
Diesel
Frequency / phase
60 Hz · 3-phase
Voltages listed
120/208 · 277/480 · 120/240
Configuration
Enclosed · Open
Fuel tank
Not specified

Market compatibility

Eligibility being confirmed

Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications.

Our team is confirming which markets this unit can be used in. Contact sales before ordering.

Specifications being verified

Our engineering team is confirming some details on this page (market eligibility, ul2200). Please confirm model and ratings with sales before ordering.

Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.

Destination check

Is this generator right for your destination?

Tell us where it will be used and what it will power. We compare your answers with what is listed for this model, and our engineers confirm the rest before you order.

  • Choose a destination to see what is listed for this model.
Overview

Product overview

The TP-P200-T3 is a 250 kVA / 200 kW standby, 225 kVA / 180 kW prime diesel generator.

It uses a Perkins 1106D-E70TAG5 engine, a Leroy Somer LSA46.3S4 alternator and a DSE7420 control panel.

It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.

  • Powered by Perkins 1106D-E70TAG5
  • Emissions: Tier 3 EPA Certified Emergency Stationary Applications
  • 60 Hz Power Rating at 3 Phase
  • Standby Power Rating: 250 kVA / 200 kW
  • Prime Power Rating: 225 kVA / 180 kW
Read the full product description

Global Generator Supply provides Emergency Stationary generators that are certified to Tier 4i, 3 and 2 depending upon the generator rating required. We provide UL2200, CSA and other certifications. Triton can build nearly any type of generator for your requirements, including both gaseous and diesel generators. Further, we maintain a stock of generators built to standard specifications for immediate shipment, including trailers, transfer switches and fuel tanks.

Triton EPA Generators are to exacting standards for the US and Canadian markets. We provide options for everything from hurricane zones to the harsh environment of the far north. Triton Generators are used at a variety of locations including government facilities, hotels, factories, medical facilities and grocery stores.

Our TP-P200-T3 provides a standby rating of 200kW / 250kVA and a prime rating of 180kW / 225kVA. The TP-P200-T3 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins engine model 1106D-E70TAG5, this generator set will provide you with the EPA standards and also provide unsurpassed performance and reliability.

The TP-P200-T3 includes just a few of the following features:

Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed
8 to 10 Hours Fuel Tank

Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.

Why choose this model

  • Perkins 1106D-E70TAG5 engineEngine data sheet included below
  • Standby & prime rated200 kW / 250 kVA standby · 180 kW / 225 kVA prime
  • 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
  • Enclosed or OpenConfigurations available for this model
  • Leroy Somer LSA46.3S4 alternatorAlternator specifications included below
  • DSE7420 control panelControl panel listed for this model

Typical applications

Listed in our industry catalogs: Data centers, Manufacturing, Restaurants & hospitality

Technical specifications

Specifications

Values are shown exactly as published. Anything not listed is marked “Not specified”.

Download full specifications
Generator
Triton Model TP-P200-T3
kVA / kW Standby 250 kVA / 200 kW
kVA / kW Prime 225 kVA / 180 kW
Engine
Engine Brand Perkins
Engine Model 1106D-E70TAG5
Alternator
Alternator Brand Leroy Somer
Alternator Model LSA46.3S4
Electrical
Voltages Available 120/208, 277/480, 120/240
Fuel System
Fuel Tank Capacity n/a
Control
Control Panel DSE7420
Physical Configuration
Models Available Enclosed, Open
Physical
DimensionsNot specified
WeightNot specified
ConfigurationsEnclosed, Open

Dimensions and weight are not published for this model. Ask for the data sheet.

Compliance & market
EmissionsTier 3 EPA Certified Emergency Stationary Applications
MarketEligibility being confirmed
Configure this generator

Choose your configuration

Options are the ones published for this model. Fuel tank and transfer switch choices are confirmed in your quote.

Frequency
Voltage
Configuration
Duty
Transfer switch needed?
Engineering documents

Technical documents

Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.

Similar generators

Compare with similar models

Same market and frequency, nearest in size. Tick up to three to compare with this model.

Comparison of TP-P200-T3 with similar models
ModelTP-P200-T3This model TP-P150-T1TP-65-T3TP-D800-T2-ULTP-D900-T2-UL
Standby200 kW / 250 kVA150 kW / 187 kVA65 kW / 81 kVA800 kW / 1,000 kVA898 kW / 1,123 kVA
Prime180 kW / 225 kVA135 kW / 170 kVA59 kW / 74 kVA728 kW / 910 kVA812 kW / 1,015 kVA
EnginePerkins 1106D-E70TAG5Perkins 1106A-70TAG2Perkins 1104D-E44TG1Doosan DP222CBDoosan DP222CC
AlternatorLeroy Somer LSA46.3S4Leroy Somer LSA44.3L10, TAL044J—Leroy Somer TAL049CLeroy Somer TAL049C
Control panelDSE7420DSE7420, DSE7320—DSEDSE
Frequency60 Hz60 Hz60 Hz60 Hz60 Hz
Voltages120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240120/208, 277/480, 120/240
ConfigurationEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, Open
Fuel tank—8-10 Hr—1100 Liters (Enclosed)1100 Liters (Enclosed)
MarketEligibility being confirmedEligibility being confirmedEligibility being confirmedEligibility being confirmedEligibility being confirmed
