60 Hz International Tier 1

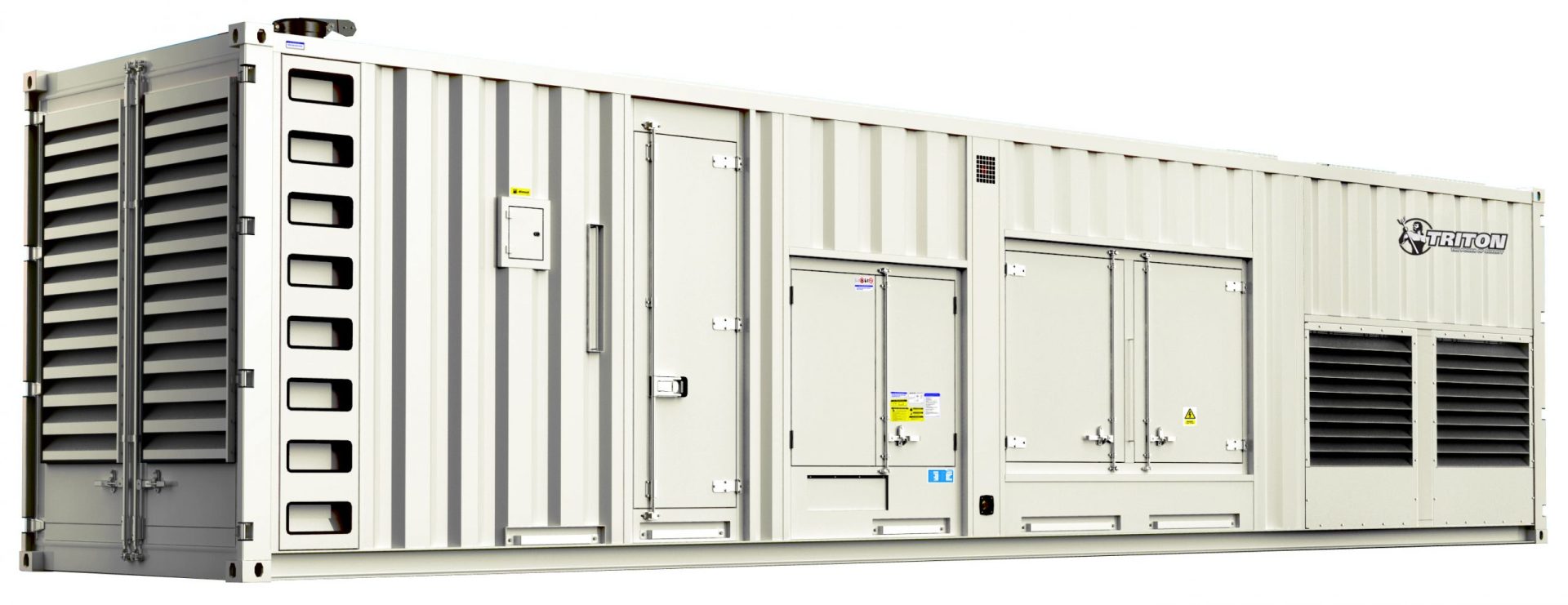

1500 kW Triton Diesel Generator TP-C1500-T1-C International Use
SKU TP-C1500-T1-C
- Engine
- Cummins KTA50-G9
- Alternator
- Leroy Somer LSA 50.2 M6
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- 8-10 Hours
Market compatibility
International market
Emissions: Tier 1 Rated, for International Use Only
Triton International generators are not compliant for use in the United States or Canada due to the emissions status.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Markets with a verified 60 Hz grid: Middle East (1) · Caribbean & Central America (7) · Latin America (5) · Asia-Pacific (1) · Countries A–Z
Overview
Product overview
The TP-C1500-T1-C is a 1,875 kVA / 1,500 kW standby, 1,562 kVA / 1,250 kW prime diesel generator for international markets.
It uses a Cummins KTA50-G9 engine, a Leroy Somer LSA 50.2 M6 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Cummins KTA50-G9
- Emissions: Tier 1 Rated, for International Use Only
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 1875 kVA / 1500 kW
- Prime Power Rating: 1562 kVA / 1250 kW
- Fuel Capacity 8-10 Hours
Read the full product description
We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-C1500-T1-C provides a standby rating of 1500kW / 1875kVA and a prime rating of 1250kW / 1562kVA. The TP-C1500-T1-C is built to rugged specifications and provides the power where and when you need it. By utilizing a Cummins KTA50-G9, this generator set will provide you with Tier 1 EPA standards and also provide unsurpassed performance and reliability.
The TP-C1500-T1-C includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed versions
Sub-Base Tank 8-10 Hours
Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Cummins KTA50-G9 engineEngine data sheet included below
- Standby & prime rated1,500 kW / 1,875 kVA standby · 1,250 kW / 1,562 kVA prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA 50.2 M6 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
- Hotels
- Marinas
- Factories
- Warehousing
- Government Buildings
- Island Power
As named in the Triton product description.
Listed in our industry catalogs: Construction, Customized builds, Manufacturing
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-C1500-T1-C |
|---|---|
| kVA / kW Standby | 1875 kVA / 1500 kW |
| kVA / kW Prime | 1562 kVA / 1250 kW |
| Engine Brand | Cummins |
|---|---|
| Engine Model | KTA50-G9 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA 50.2 M6 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | 8-10 Hours |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 1 Rated, for International Use Only |
|---|---|
| Market | International market |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Complete your generator package
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 8-10 Hours. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts & service itemsSearch parts and documents that mention the KTA50-G9. Confirm your engine serial number when ordering Find parts
