50 Hz International

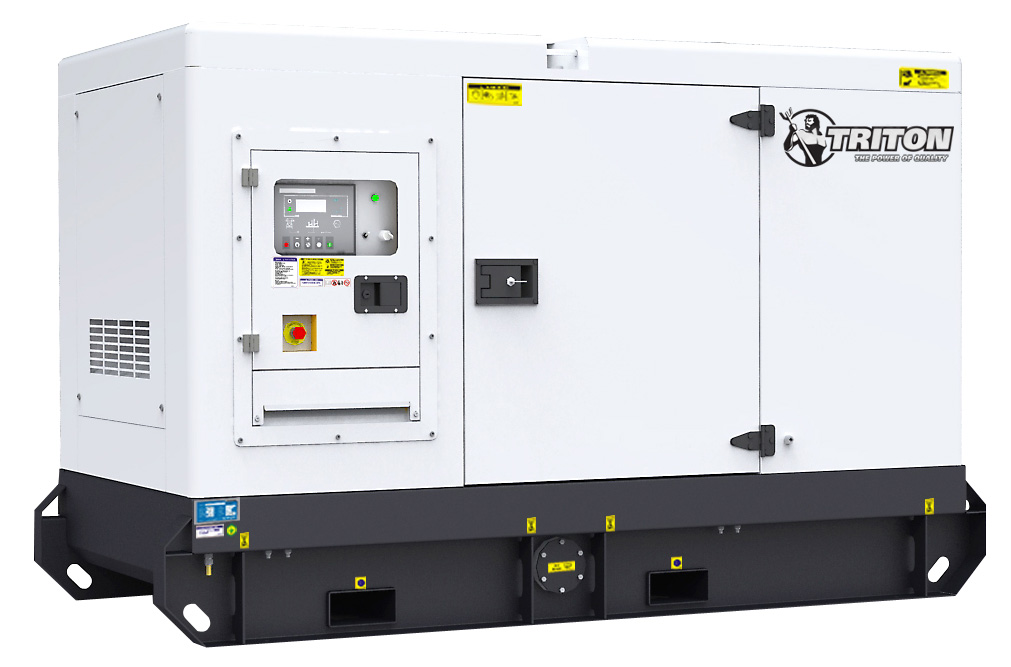

20 kVA Triton Diesel Generator TP-P20-T1-50 International Use
SKU TP-P22-T1-50 Model TP-P20-T1-50
- Engine
- Perkins 404D-22G
- Alternator
- Leroy Somer LSA40M5
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 50 Hz · 3-phase
- Voltages listed
- 110/220 · 240/380
- Configuration
- Enclosed · Open
- Fuel tank
- 130 L
Market compatibility
International market
Triton International generators are not compliant for use in the United States or Canada due to the emissions status.
Specifications being verified
Our engineering team is confirming some details on this page (model). Please confirm model and ratings with sales before ordering.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Markets with a verified 50 Hz grid: Africa (13) · Middle East (5) · Caribbean & Central America (1) · Latin America (3) · Asia-Pacific (7) · Countries A–Z
Overview
Product overview
The TP-P22-T1-50 is a 22.1 kVA / 17.7 kW standby, 20 kVA / 16 kW prime diesel generator for international markets.
It uses a Perkins 404D-22G engine, a Leroy Somer LSA40M5 alternator and a DSE7420 control panel.
It is listed at 50 Hz, 3-phase, with voltages 110/220 and 240/380, in enclosed or open configurations.
- Powered by Perkins 404D-22G
- Emissions: Not EPA Certified – Export Use Only
- 50 Hz Power Rating at 3 Phase
- Standby Power Rating: 22.1 kVA / 17.7 kW
- Prime Power Rating: 20 kVA / 16 kW
- Fuel Capacity 130 L
Read the full product description
We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-P20-T1-50 provides a standby rating of 17.7kW / 22.1kVA and a prime rating of 16kW / 20kVA. The TP-P20-T1-50 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 404D-22G, this generator set will provide you with unsurpassed performance and reliability.
The TP-P20-T1-50 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open & Enclosed
Sub-Base Tank 8-10 Hours
Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Perkins 404D-22G engineEngine data sheet included below
- Standby & prime rated22.1 kVA / 17.7 kW standby · 20 kVA / 16 kW prime
- 50 Hz, 3-phaseVoltages listed: 110/220, 240/380
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA40M5 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
- Hotels
- Marinas
- Factories
- Warehousing
- Government Buildings
- Island Power
As named in the Triton product description.
Technical specifications
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P20-T1-50 |
|---|---|
| kVA / kW Standby | 22.1 kVA / 17.7 kW |
| kVA / kW Prime | 20 kVA / 16 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 404D-22G |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA40M5 |
| Voltages Available | 110/220, 240/380 |
|---|
| Fuel Tank Capacity | 130 L |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Not EPA Certified – Export Use Only |
|---|---|
| Market | International market |
Engineering documents
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications v1 Generator set specificationsDownload
- Generator Set Specifications v2 Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Compatible with this engine
Parts listed for 404D-22G
These parts name this engine model in their own description. Confirm your engine serial number when ordering.
Primary Fuel Filter – Perkins Engine Model 403A-15G2, 404D-22G
26561117 · Filter / belt
Perkins
List price $104.29
Complete your generator package
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 130 L. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts for the 404D-22G4 parts name this engine model in their own description. Compatible with this engine See compatible parts
Similar generators
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
- 50 Hz International
15 kVA Triton Diesel Generator TP-P16-T1-50 International Use
TP-P16-T1-50
- Standby
- 13 kW / 17 kVA
- Prime
- 12 kW / 15 kVA
Engine Perkins
- 50 Hz International
30 kVA Triton Diesel Generator TP-P30-T1-50 International Use
TP-P33-T1-50
- Standby
- 26 kW / 33 kVA
- Prime
- 24 kW / 30 kVA
Engine Perkins
- 50 Hz International
10 kVA Triton Diesel Generator TP-P10-T1-50 International Use
TP-P10-T1-50
- Standby
- 8 kW / 10 kVA
- Prime
- 7.2 kW / 9 kVA
Engine Perkins
- 50 Hz International
45 kVA Triton Diesel Generator TP-P45-T1-50 International Use
TP-P50-T1-50
- Standby
- 39 kW / 49 kVA
- Prime
- 36 kW / 45 kVA
Engine Perkins
| Model | TP-P22-T1-50This model | TP-P16-T1-50 | TP-P33-T1-50 | TP-P10-T1-50 | TP-P50-T1-50 |
|---|---|---|---|---|---|
| Standby | 22.1 kVA / 17.7 kW | 17 kVA / 13 kW | 33 kVA / 26 kW | 10 kVA / 8 kW | 49 kVA / 39 kW |
| Prime | 20 kVA / 16 kW | 15 kVA / 12 kW | 30 kVA / 24 kW | 9 kVA / 7.2 kW | 45 kVA / 36 kW |
| Engine | Perkins 404D-22G | Perkins 403A-15G2 | Perkins 1103A-33G | Perkins 403D-11G | Perkins 1103A-33TG1 |
| Alternator | Leroy Somer LSA40M5 | Leroy Somer LSA40S4 | Leroy Somer LSA42.3VS3 | Leroy Somer LSA40VS1 | Leroy Somer LSA42.3M7 |
| Control panel | DSE7420 | DSE7420 | DSE7420 | DSE7420 | DSE7420 |
| Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Voltages | 110/220, 240/380 | 110/220, 240/380 | 110/220, 240/380 | 110/220, 240/380 | 110/220, 240/380 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | 130 L | 100 L | 160 L | 8-10 Hours | 320 L |
| Market | International market | International market | International market | International market | International market |
