45 kVA Triton Diesel Generator TP-P45-T1-50  International Use
  • Export supportconfiguration and shipping quotes for your destination
  • Engineering supporthelp with sizing, voltage and configuration
  • 5 technical documentsspec sheet, engine data, alternator data, brochure
50 Hz International

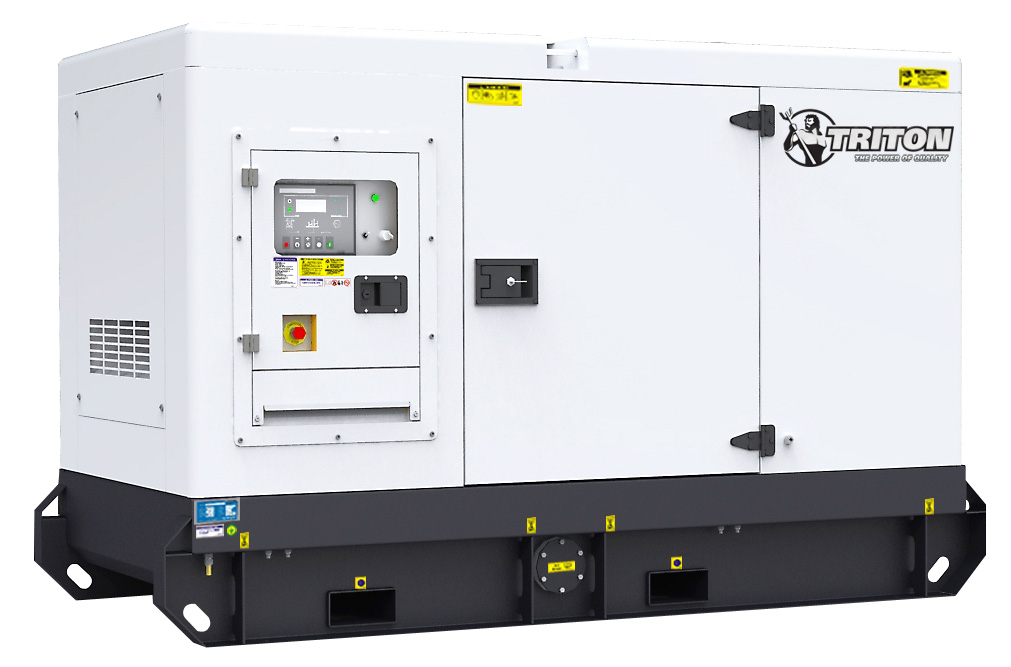

45 kVA Triton Diesel Generator TP-P45-T1-50 International Use

SKU TP-P50-T1-50 Model TP-P45-T1-50

Standby rating

49 kVA 39 kW

Prime rating

45 kVA 36 kW

Engine
Perkins 1103A-33TG1
Alternator
Leroy Somer LSA42.3M7
Control panel
DSE7420
Fuel
Diesel
Frequency / phase
50 Hz · 3-phase
Voltages listed
110/220 · 240/380
Configuration
Enclosed · Open
Fuel tank
320 L

Market compatibility

International market

Triton International generators are not compliant for use in the United States or Canada due to the emissions status.

Specifications being verified

Our engineering team is confirming some details on this page (model). Please confirm model and ratings with sales before ordering.

Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.

Destination check

Is this generator right for your destination?

Tell us where it will be used and what it will power. We compare your answers with what is listed for this model, and our engineers confirm the rest before you order.

  • Choose a destination to see what is listed for this model.

Markets with a verified 50 Hz grid: Africa (13) · Middle East (5) · Caribbean & Central America (1) · Latin America (3) · Asia-Pacific (7) · Countries A–Z

Overview

Product overview

The TP-P50-T1-50 is a 49 kVA / 39 kW standby, 45 kVA / 36 kW prime diesel generator for international markets.

It uses a Perkins 1103A-33TG1 engine, a Leroy Somer LSA42.3M7 alternator and a DSE7420 control panel.

It is listed at 50 Hz, 3-phase, with voltages 110/220 and 240/380, in enclosed or open configurations.

  • Powered by Perkins 1103A-33TG1
  • Emissions: Not EPA Certified – Export Use Only
  • 50 Hz Power Rating at 3 Phase
  • Standby Power Rating: 49 kVA / 39 kW
  • Prime Power Rating: 45 kVA / 36 kW
  • Fuel Capacity 320 L
Read the full product description

We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.

Our TP-P45-T1-50 provides a standby rating of 39kW / 49kVA and a prime rating of 36kW / 45kVA. The TP-P45-T1-50 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 1103A-33TG1, this generator set will provide you with unsurpassed performance and reliability.

The TP-P45-T1-50 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open & Enclosed
Sub-Base Tank 8-10 Hours

Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.

Why choose this model

  • Perkins 1103A-33TG1 engineEngine data sheet included below
  • Standby & prime rated49 kVA / 39 kW standby · 45 kVA / 36 kW prime
  • 50 Hz, 3-phaseVoltages listed: 110/220, 240/380
  • Enclosed or OpenConfigurations available for this model
  • Leroy Somer LSA42.3M7 alternatorAlternator specifications included below
  • DSE7420 control panelControl panel listed for this model

Typical applications

  • Hotels
  • Marinas
  • Factories
  • Warehousing
  • Government Buildings
  • Island Power

As named in the Triton product description.

Technical specifications

Specifications

Values are shown exactly as published. Anything not listed is marked “Not specified”.

Download full specifications
Generator
Triton Model TP-P45-T1-50
kVA / kW Standby 49 kVA / 39 kW
kVA / kW Prime 45 kVA / 36 kW
Engine
Engine Brand Perkins
Engine Model 1103A-33TG1
Alternator
Alternator Brand Leroy Somer
Alternator Model LSA42.3M7
Electrical
Voltages Available 110/220, 240/380
Fuel System
Fuel Tank Capacity 320 L
Control
Control Panel DSE7420
Physical Configuration
Models Available Enclosed, Open
Physical
DimensionsNot specified
WeightNot specified
ConfigurationsEnclosed, Open

Dimensions and weight are not published for this model. Ask for the data sheet.

Compliance & market
EmissionsNot EPA Certified – Export Use Only
MarketInternational market
Configure this generator

Choose your configuration

Options are the ones published for this model. Fuel tank and transfer switch choices are confirmed in your quote.

Frequency
Voltage
Configuration
Duty
Transfer switch needed?
Engineering documents

Technical documents

Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.

Compatible with this engine

Parts listed for 1103A-33TG1

These parts name this engine model in their own description. Confirm your engine serial number when ordering.

Similar generators

Compare with similar models

Same market and frequency, nearest in size. Tick up to three to compare with this model.

Comparison of TP-P50-T1-50 with similar models
ModelTP-P50-T1-50This model TP-P33-T1-50TP-P66-T1-50TP-P67-T1-S-K-50TP-P22-T1-50
Standby49 kVA / 39 kW33 kVA / 26 kW66 kVA / 53 kW71 kVA / 57 kW22.1 kVA / 17.7 kW
Prime45 kVA / 36 kW30 kVA / 24 kW60 kVA / 48 kW65 kVA / 52 kW20 kVA / 16 kW
EnginePerkins 1103A-33TG1Perkins 1103A-33GPerkins 1103A-33TG2Perkins 1104A-44TG1Perkins 404D-22G
AlternatorLeroy Somer LSA42.3M7Leroy Somer LSA42.3VS3Leroy Somer LSA44.3S2Leroy Somer TAL044 CLeroy Somer LSA40M5
Control panelDSE7420DSE7420DSE7420DSE7310DSE7420
Frequency50 Hz50 Hz50 Hz50 Hz50 Hz
Voltages110/220, 240/380110/220, 240/380110/220, 240/380220/380110/220, 240/380
ConfigurationEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, OpenEnclosed, Open
Fuel tank320 L160 L320 L160 L130 L
MarketInternational marketInternational marketInternational marketInternational marketInternational market
