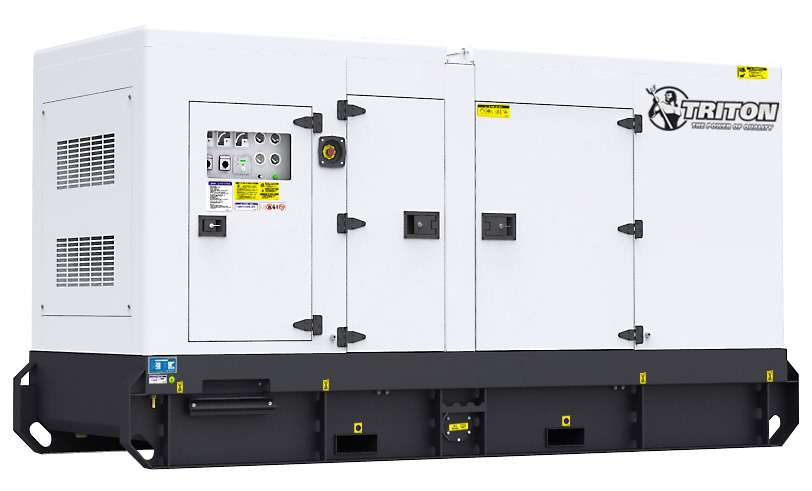

200 kVA Triton Diesel Generator TP-P175-T1-50 International Use
SKU TP-P200-T1-50 Model TP-P175-T1-50
- Engine
- Perkins 1106A-70TAG3
- Alternator
- Leroy Somer LSA44.3VL13
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 50 Hz · 3-phase
- Voltages listed
- 110/220 · 240/380
- Configuration
- Enclosed · Open
- Fuel tank
- 8-10 Hr
Market compatibility
International market
Emissions: Tier 1 Rated, for International Use Only
Triton International generators are not compliant for use in the United States or Canada due to the emissions status.
Our engineering team is confirming some details on this page (model). Please confirm model and ratings with sales before ordering.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Markets with a verified 50 Hz grid: Africa (13) · Middle East (5) · Caribbean & Central America (1) · Latin America (3) · Asia-Pacific (7) · Countries A–Z
Product overview
The TP-P200-T1-50 is a 198 kVA / 158 kW standby, 180 kVA / 144 kW prime diesel generator for international markets.
It uses a Perkins 1106A-70TAG3 engine, a Leroy Somer LSA44.3VL13 alternator and a DSE7420 control panel.
It is listed at 50 Hz, 3-phase, with voltages 110/220 and 240/380, in enclosed or open configurations.
- Powered by Perkins 1106A-70TAG3
- Emissions: Tier 1 Rated, for International Use Only
- 50 Hz Power Rating at 3 Phase
- Standby Power Rating: 198 kVA / 158 kW
- Prime Power Rating: 180 kVA / 144 kW
- Fuel Capacity 8-10 Hr
Read the full product description
We have diesel and natural gas generators from 10 to 10,000 kW. Our International Triton Generators are built to withstand the harsh environment throughout the Caribbean, South America and Africa. Triton generators power everything including Hotels, Marinas, Factories, Warehousing, Government Buildings to full Island Power. Triton Mobile Generators are utilized for their unsurpassed reliability, efficiency, and quiet performance. Triton is the brand you can rely on when you need dependable power.
Our TP-P175-T1-50 provides a standby rating of 158kW / 198kVA and a prime rating of 144kW / 180kVA. The TP-P175-T1-50 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins 1106A-70TAG3, this generator set will provide you with the stringent EPA standards and also provide unsurpassed performance and reliability.
The TP-P175-T1-50 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open & Enclosed
Sub-Base Tank 8-10 Hours
Triton International generators are not compliant for use in the United States or Canada due to the emissions status. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Perkins 1106A-70TAG3 engineEngine data sheet included below
- Standby & prime rated198 kVA / 158 kW standby · 180 kVA / 144 kW prime
- 50 Hz, 3-phaseVoltages listed: 110/220, 240/380
- Enclosed or OpenConfigurations available for this model
- Leroy Somer LSA44.3VL13 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
- Hotels
- Marinas
- Factories
- Warehousing
- Government Buildings
- Island Power
As named in the Triton product description.
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P175-T1-50 |
|---|---|
| kVA / kW Standby | 198 kVA / 158 kW |
| kVA / kW Prime | 180 kVA / 144 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 1106A-70TAG3 |
| Alternator Brand | Leroy Somer |
|---|---|
| Alternator Model | LSA44.3VL13 |
| Voltages Available | 110/220, 240/380 |
|---|
| Fuel Tank Capacity | 8-10 Hr |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 1 Rated, for International Use Only |
|---|---|
| Market | International market |
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Parts listed for 1106A-70TAG3
These parts name this engine model in their own description. Confirm your engine serial number when ordering.
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel systemListed with this model: 8-10 Hr. 16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts for the 1106A-70TAG31 parts name this engine model in their own description. Compatible with this engine See compatible parts
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
- 50 Hz International
150 kVA Triton Diesel Generator TP-P150-T1-50 International Use
TP-P165-T1-50
- Standby
- 132 kW / 165 kVA
- Prime
- 120 kW / 150 kVA
Engine Perkins
- 50 Hz International
135 kVA Triton Diesel Generator TP-P135-T1-50 International Use
TP-P150-T1-50
- Standby
- 120 kW / 150 kVA
- Prime
- 108 kW / 135 kVA
Engine Perkins
- 50 Hz International
200 kVA Triton Diesel Generator TP-P200-T1-50 International Use
TP-P220-T1-50
- Standby
- 200 kW / 250 kVA
- Prime
- 180 kW / 225 kVA
Engine Perkins
- 50 Hz International
220 kVA Triton Diesel Generator TP-P220-T1-50 International Use
TP-P220-T1
- Standby
- 220 kW / 275 kVA
- Prime
- 200 kW / 250 kVA
Engine Perkins
| Model | TP-P200-T1-50This model | TP-P165-T1-50 | TP-P150-T1-50 | TP-P220-T1-50 | TP-P220-T1 |
|---|---|---|---|---|---|
| Standby | 198 kVA / 158 kW | 165 kVA / 132 kW | 150 kVA / 120 kW | 250 kVA / 200 kW | 275 kVA / 220 kW |
| Prime | 180 kVA / 144 kW | 150 kVA / 120 kW | 135 kVA / 108 kW | 225 kVA / 180 kW | 250 kVA / 200 kW |
| Engine | Perkins 1106A-70TAG3 | Perkins 1106A-70TAG2 | Perkins 1106A-70TG1 | Perkins 1206A-E70TTAG2 | Perkins 1206A-E70TTAG3 |
| Alternator | Leroy Somer LSA44.3VL13 | Leroy Somer LSA44.3VL14 | Leroy Somer LSA44.3M8 | Leroy Somer LSA46.3S4 | Leroy Somer LSA46.3S4 |
| Control panel | DSE7420 | DSE7420 | — | DSE7420 | DSE |
| Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Voltages | 110/220, 240/380 | 110/220, 240/380 | 110/220, 240/380 | 110/220, 240/380 | 220/380 |
| Configuration | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open | Enclosed, Open |
| Fuel tank | 8-10 Hr | 8-10 Hr | 8-10 Hr | 380 L | 420 L |
| Market | International market | International market | International market | International market | International market |
