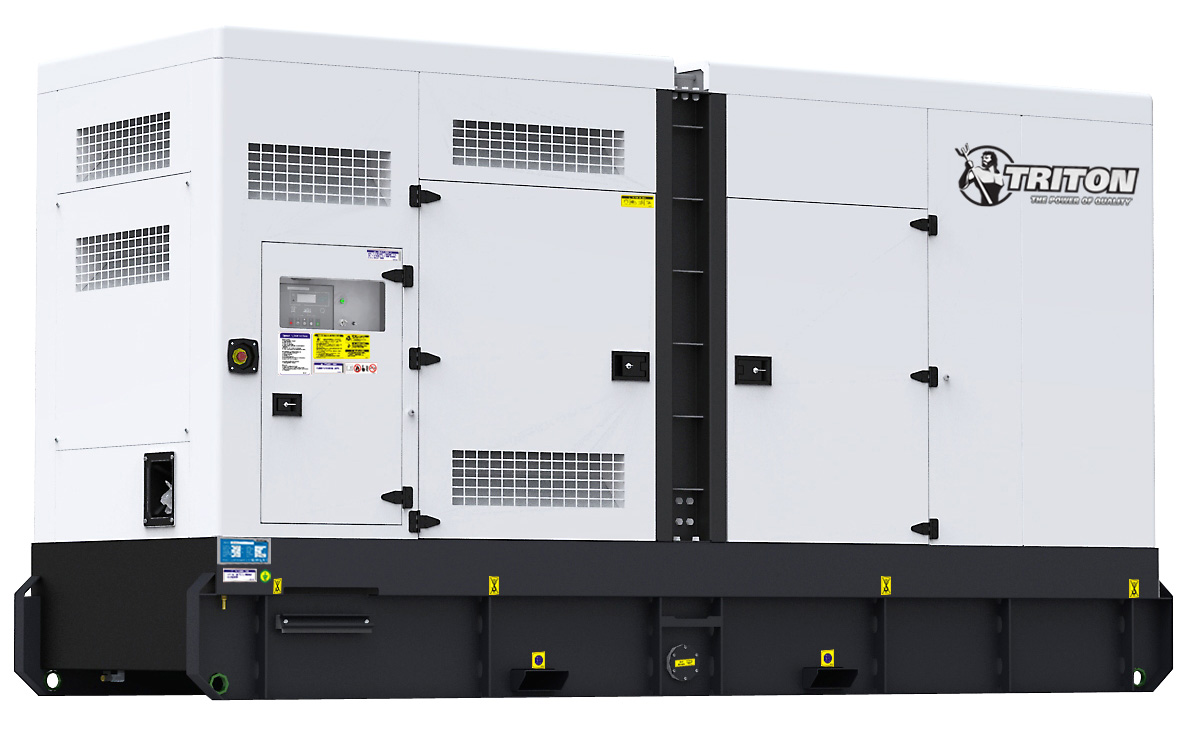

350 kW Triton Diesel Generator TP-P350-T3 EPA Certified
SKU TP-P350-T3
- Engine
- Perkins 2206D-E13TAG2
- Alternator
- Leory Somer LSA46.3L11
- Control panel
- DSE7420
- Fuel
- Diesel
- Frequency / phase
- 60 Hz · 3-phase
- Voltages listed
- 120/208 · 277/480 · 120/240
- Configuration
- Enclosed · Open
- Fuel tank
- Not specified
Market compatibility
USA EPA-certified
Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications.
Need help with voltage, frequency or sizing? Talk to a generator specialist or call +1 251-314-4812.
Product overview
The TP-P350-T3 is a 438 kVA / 350 kW standby, 400 kVA / 320 kW prime diesel generator, EPA-certified for the US market.
It uses a Perkins 2206D-E13TAG2 engine, a Leory Somer LSA46.3L11 alternator and a DSE7420 control panel.
It is listed at 60 Hz, 3-phase, with voltages 120/208 and 277/480 and 120/240, in enclosed or open configurations.
- Powered by Perkins 2206D-E13TAG2
- Emissions: Tier 3 EPA Certified Emergency Stationary Applications
- 60 Hz Power Rating at 3 Phase
- Standby Power Rating: 438 kVA / 350 kW
- Prime Power Rating: 400 kVA / 320 kW
Read the full product description
Global Generator Supply provides Emergency Stationary generators that are certified to Tier 4i, 3 and 2 depending upon the generator rating required. We provide UL2200, CSA and other certifications. Triton can build nearly any type of generator for your requirements, including both gaseous and diesel generators. Further, we maintain a stock of generators built to standard specifications for immediate shipment, including trailers, transfer switches and fuel tanks.
Triton EPA Generators are to exacting standards for the US and Canadian markets. We provide options for everything from hurricane zones to the harsh environment of the far north. Triton Generators are used at a variety of locations including government facilities, hotels, factories, medical facilities and grocery stores.
Our TP-P350-T3 provides a standby rating of 350kW / 438kVA and a prime rating of 320kW / 400kVA. The TP-P350-T3 is built to rugged specifications and provides the power where and when you need it. By utilizing a Perkins engine model 2206D-E13TAG2, this generator set will provide you with the EPA standards and also provide unsurpassed performance and reliability.
The TP-P350-T3 includes just a few of the following features:
Programmable Control Panel
Easy Interface and Serviceability Access
Quiet Operation (as low as 64 dBA)
Heavy-Duty Chassis designed to handle any terrain or location
Available in Open and Enclosed
8 to 10 Hours Fuel Tank
Triton EPA Generators are compliant for use in the United States or Canada for emergency stationary applications. Our generators are engineered to operate in the most challenging environments and can be modified to meet any application. With standalone models ranging from 10 kW to 2500 kW and paralleled generators up to 20 MW, and the ability to customize a unit to fit any need, your options for a durable and reliable power generation solution are endless.
Why choose this model
- Perkins 2206D-E13TAG2 engineEngine data sheet included below
- Standby & prime rated350 kW / 438 kVA standby · 320 kW / 400 kVA prime
- 60 Hz, 3-phaseVoltages listed: 120/208, 277/480, 120/240
- Enclosed or OpenConfigurations available for this model
- Leory Somer LSA46.3L11 alternatorAlternator specifications included below
- DSE7420 control panelControl panel listed for this model
Typical applications
Listed in our industry catalogs: Data centers, Healthcare, Manufacturing, Oil & gas, Restaurants & hospitality
Specifications
Values are shown exactly as published. Anything not listed is marked “Not specified”.
Download full specifications| Triton Model | TP-P350-T3 |
|---|---|
| kVA / kW Standby | 438 kVA / 350 kW |
| kVA / kW Prime | 400 kVA / 320 kW |
| Engine Brand | Perkins |
|---|---|
| Engine Model | 2206D-E13TAG2 |
| Alternator Brand | Leory Somer |
|---|---|
| Alternator Model | LSA46.3L11 |
| Voltages Available | 120/208, 277/480, 120/240 |
|---|
| Fuel Tank Capacity | n/a |
|---|
| Control Panel | DSE7420 |
|---|
| Models Available | Enclosed, Open |
|---|
| Dimensions | Not specified |
|---|---|
| Weight | Not specified |
| Configurations | Enclosed, Open |
Dimensions and weight are not published for this model. Ask for the data sheet.
| Emissions | Tier 3 EPA Certified Emergency Stationary Applications |
|---|---|
| Market | USA EPA-certified |
Technical documents
Specification sheets, engine and alternator data and brochures for this model, for your engineering and procurement teams.
- Generator Set Specifications Generator set specificationsDownload
- Engine Data Sheet Engine data sheetDownload
- Alternator Specifications Alternator specificationsDownload
- Product Brochure Product brochureDownload
Parts listed for 2206D-E13TAG2
These parts name this engine model in their own description. Confirm your engine serial number when ordering.
Secondary Fuel Filter – Perkins Engine Model 2206D-E13TAG2
CH10931 · Filter / belt
Perkins
List price $117.65
Everything this unit needs on site
Our engineers match transfer switches, fuel systems and trailers to this generator's rating when you request a quote.
- Automatic transfer switchAutomatic transfer switches from 100 to 4,000 A. Matched to this unit on request View transfer switches
- Fuel system16 double wall and 19 single wall tanks, UL 142 and non-UL. Matched to this unit on request View fuel tanks
- TrailerOpen-deck and generator trailers. Matched to this unit on request View trailers
- Parts for the 2206D-E13TAG23 parts name this engine model in their own description. Compatible with this engine See compatible parts
Compare with similar models
Same market and frequency, nearest in size. Tick up to three to compare with this model.
- 60 Hz USA EPA UL2200
350 kW Triton Diesel Generator TP-P350-T3-UL Tier 3 – UL Listed
TP-P350-T3-UL
- Standby
- 350 kW / 438 kVA
- Prime
- 320 kW / 400 kVA
Engine Perkins
- 60 Hz USA EPA Mobile
350 kW Triton Diesel Generator TP-C350-T3-SAE EPA Certified
TP-C350-T3-SAE
- Standby
- 359 kW / 448 kVA
- Prime
- 315 kW / 394 kVA
Engine Cummins
- 60 Hz USA EPA UL2200
300 kW Triton Diesel Generator TP-P300-T3-UL Tier 3 – UL Listed
TP-P300-T3-UL
- Standby
- 308 kW / 385 kVA
- Prime
- 280 kW / 350 kVA
Engine Perkins
- 60 Hz USA EPA
400 kW Triton Diesel Generator TP-P400-T3 EPA Certified
TP-P400-T3
- Standby
- 400 kW / 500 kVA
- Prime
- 360 kW / 450 kVA
Engine Perkins
| Model | TP-P350-T3This model | TP-P350-T3-UL | TP-C350-T3-SAE | TP-P300-T3-UL | TP-P400-T3 |
|---|---|---|---|---|---|
| Standby | 350 kW / 438 kVA | 350 kW / 438 kVA | 359 kW / 448 kVA | 308 kW / 385 kVA | 400 kW / 500 kVA |
| Prime | 320 kW / 400 kVA | 320 kW / 400 kVA | 315 kW / 394 kVA | 280 kW / 350 kVA | 360 kW / 450 kVA |
| Engine | Perkins 2206D-E13TAG2 | Perkins 2206D-E13TAG2 | Cummins QSZ13-G6 | Perkins 1706D-E93TAG2 | Perkins 2206D-E13TAG3 |
| Alternator | Leory Somer LSA46.3L11 | Leroy Somer LSA46.3L10 | — | Leroy Somer LSA46.3L11 | Leroy Somer LSA47.2VS2 |
| Control panel | DSE7420 | Deep Sea DSE 7420 | — | Deep Sea DSE 7420 | DSE7420 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Voltages | 120/208, 277/480, 120/240 | 120/208, 277/480 | 120/208, 277/480 | 120/208, 277/480 | 120/208, 277/480, 120/240 |
| Configuration | Enclosed, Open | Enclosed, Open Skid | Enclosed, Open | Enclosed, Open Skid | Enclosed, Open |
| Fuel tank | — | — | — | — | — |
| Market | USA EPA-certified | USA EPA-certified | USA EPA-certified | USA EPA-certified | USA EPA-certified |
